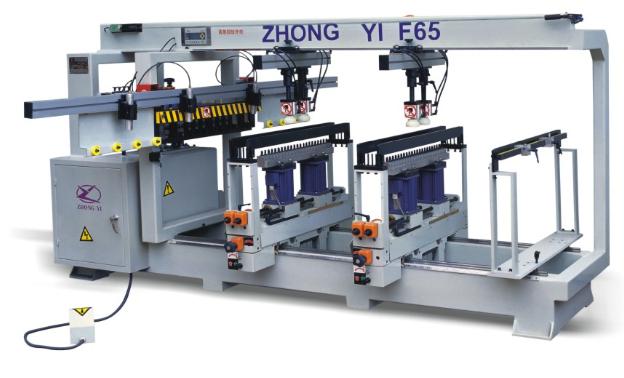

F65 SPECS Muti-drill Machine
Features
1. Cylinder positioning feed in/out direction.
2. Driller magazine automatically 90? turn over.
3. Touch screen control.
4. Efficiency and easily operation.
Technical Specs
◎Power source:380V/50Hz/3HP+N
◎Air pressure:0.6-0.8Mpa
◎Panel length:250-2500mm
◎Panel thickness:10-60mm
◎Panel width:150-1800mm
◎Driller magazine: 2 vertical+1 horizontal
◎Driller bits: 2x21+23=65pcs
◎Driller bits distance:32mm
◎Panel positioning feed in/out direction:4 movable cylinders
◎Vertical drilling speed:3000r/min.
◎Drilling depth:60mm
◎Max. drilling diameter:15mm
◎Total power:5.9KW
◎Machine size:2850x1200x1550mm
◎Machine weight:1500kg
